Titan SDPL-8000 4-Post Lift
The Titan 4 post parking/storage lifts are ideal for automotive enthusiasts or if you just need extra space in your garage. They are heavy duty with one piece diamond plated runways, 3 inch cylinder and a durable scratch-resistant powder coated midnight black finish.

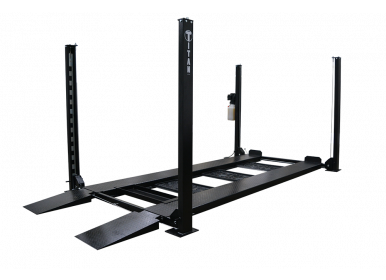

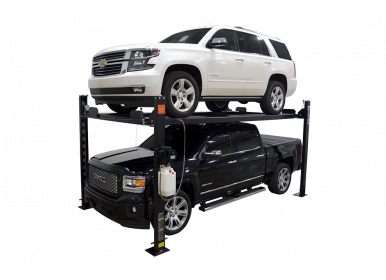

Titan SDPL-8000XLT 4-Post Lift
The SDPL-8000XLT comes with a 110 Volt power unit easily adaptable to most residential applications. Heavy duty multiple position locking mechanism and enclosed carriage arms to ensure maximum safety. Easy operation lock handle is located by power unit minimizing any bending or squatting. There are many options available to personalize the lift to your needs. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

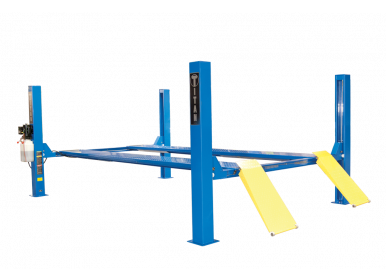

Titan HD4P-12000 4-Post Lift
The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.

Titan HD4P-12000 SPECIFICATIONS

Overall Height – 88″
Overall Width – 137″
Overall Length – 195.25″
Lifting Speed – 51 sec
Max Lifting Height – 67″
Lowered Runway Height – 6″
Width Between Columns – 118.5″
Max Drive-Thru Clearance – 104.5″
Max Clearance Under Runway – 63″
Runway Width – 19.25″
Width Between Runways – 48″
Runway Length (no ramp) – 191.25″
Ramp Length – 38″
Load Capacity – 12,000 lb
Concrete Spec. Min. – 6″ Reinforced @ 3,000 PSI
Power Supply – 220V-1PH-60HZ-20AMP
